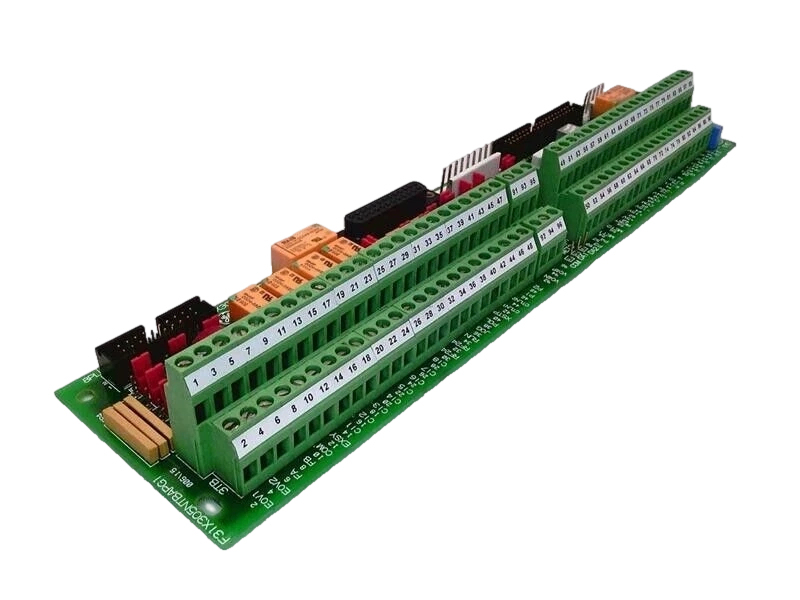

Name: 531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board
Brand: Joyoung International Trading Co.,Ltd
SKU: 531X305NTBAPG1
Price: 1750 USD
Availability: InStock

خانه محصولات GE Fanuc PLC

531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board

جزئیات محصول:

محل منبع:	ایالات متحده آمریکا
نام تجاری:	GE
گواهی:	CO
شماره مدل:	531X305NTBAPG1

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	$1750
جزئیات بسته بندی:	6.4 × 6.4 × 4.8 (16 سانتی متر × 16 سانتی متر × 12 سانتی متر)
زمان تحویل:	5-8 روز کاری
شرایط پرداخت:	T/T
قابلیت ارائه:	10 عدد

مخاطب

توضیحات محصول جزئیات

نام تجاری:	GE	مدل:	531X305NTBAPG1
وضعیت:	جدید	وزن ناخالص / وزن حمل و نقل:	2.2 پوند / 35.2 اونس / 1 کیلوگرم
اندازه بسته بندی:	6.4 × 6.4 × 4.8 (16 سانتی متر × 16 سانتی متر × 12 سانتی متر)	کشور منشأ/کشور اصلی:	ایالات متحده
زمان سرب:	موجود است	بندر حمل و نقل:	زیان
پرداخت:	T/T	قیمت فروش:	تحقیق
رنگ:	بستگی به مواد داره	گارانتی:	12 ماه
زمان سرب:	5-8 روز کاری	همکاران پیک:	DHL، UPS، TNT، FedEx و EMS
برجسته کردن:	531X305NTBAPG1 Terminal Drive Board,EX2000 Excitation System Terminal Drive Board,NTB/3TB Terminal Board GE Terminal Board , EX2000 Excitation System Terminal Drive Board , NTB/3TB Terminal Board GE Terminal Board

531X305NTBAPG1 GE TERMINAL DRIVE BOARD EX2000 Excitation System

The 531X305NTBAPG1 is a GE Terminal Drive Board designed for the EX2000 Excitation System.

Product Specifications

Brand Name	GE
Model	531X305NTBAPG1
Catalog	Mark VI
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1750
Warranty	12 months
Lead time	3-5 work days

Additional Information

N/M	N/M
GEH-6421	Mark VI Turbine Control System Guide
GEH-6403	Control System Toolbox for Configuring a Mark VI Controller
GEH-6408	Control System Toolbox for Configuring the Trend Recorder

Product Description

The 531X305NTBAPG1 GE is an NTB/3TB Terminal Board developed by GE under the EX2000 Excitation system. The drive (or exciter) cabinet houses the 531X305NTB (NTB/3TB) board. The drive's (or exciter's) connection terminals for the majority of external signal-level I/O are located on the board, along with passive interface circuitry.

Key Features:

Features a differential A-guad-B encoder interface with a marker channel for connection to the drive
Optical isolation: The encoder circuit is optically isolated on the drive control board
Setup Flexibility: Jumpers enable configuration for +5 V or +15 V encoders
Hardware jumpers are used to bias disconnected inputs to +24 or -24 V dc depending on whether positive or negative logic is employed

Plugs 6PL and 8PL from the drive control board, plugs 2PL and 4PL from the power supply board, plug COMPL from the terminal board 3TB, and plugs 2PL and 4PL from external equipment connect to the NTB/3TB.
